Non Return in-line Valve 12mm 19mm 25mm

Description

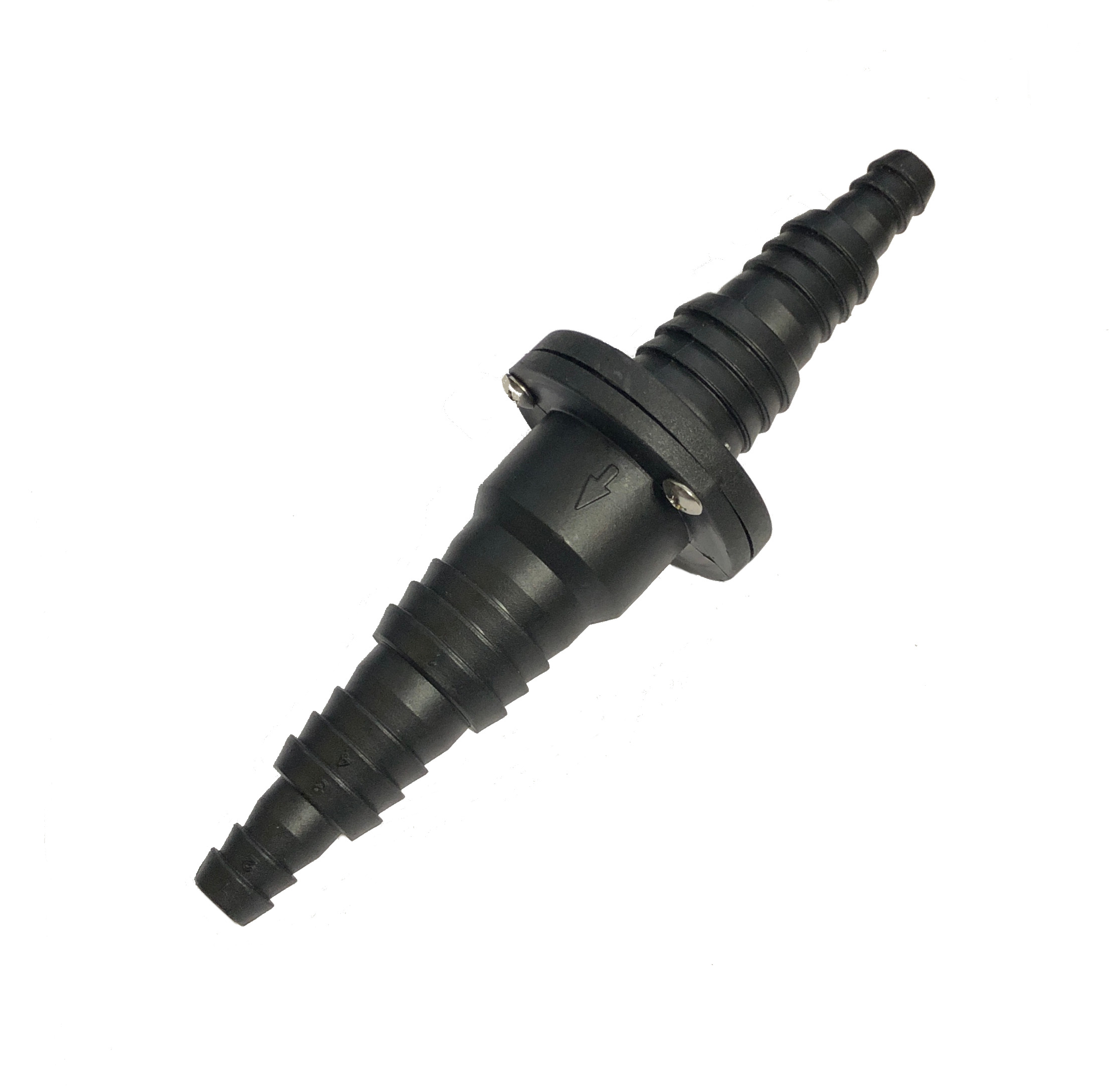

Marine Boat Bilge In-Line Non Return Check Valve

Engineered for One Way Water Flow in Marine Boat Hoses

Reliable water management is non negotiable aboard any vessel. The flap type in-line non return valve serves as a critical line of defense against backflow infiltration, ensuring that pumped water exits the boat and stays out. Designed with a high quality flap valve that responds instantaneously to pressure differentials, this valve opens freely during pump discharge and seals firmly upon flow cessation. Unlike spring loaded alternatives, the gravity assisted flap mechanism delivers minimal flow resistance while offering superior tolerance to suspended particulates, which can be a common challenge in bilge and shower sump outlet applications. The result is a durable, low maintenance solution that preserves pumping efficiency and prevents the backflow of discharged water through the output hose.

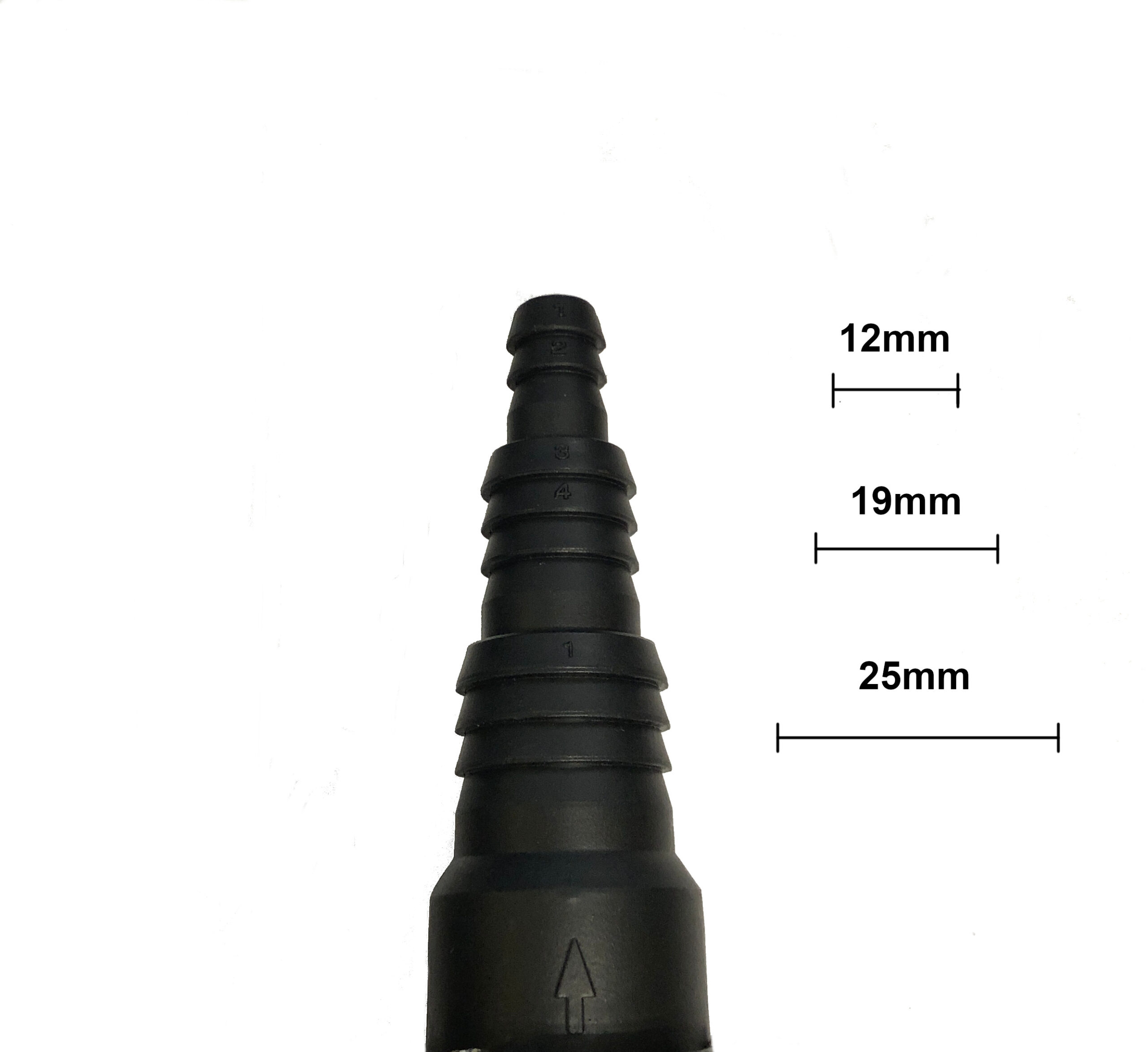

Size Options for many Bilge Hose Non Return Valve Applications

The 19mm (1/2″) , 19mm (3/4″) and 25mm (1″) size range is precision engineered to align with standard discharge hoses found on the majority of boats. This dimensional compatibility facilitates seamless integration into electric bilge pump hoses, manual bilge pumps, shower sump outlets, electric submersible pumps, and deck wash systems without the need for adapters or extensive hose modifications. Despite their compact in-line hose fitting shape and size, these valves support substantial flow capacities, ensuring that pumping performance remains unimpeded. The in-line hose fitting one way valve design proves invaluable in confined engine compartments and bilge cavities, enabling installers to position the valve in close proximity to the thru-hull fitting, thereby minimising the volume of residual water subject to gravitational backflow.

Non Return Valves Built for the Boating Marine Environment

Saltwater, UV radiation, and petroleum based contaminants present a constant assault on onboard components. Our non return valves are manufactured from heavy duty Polypropylene plastic, a high strength polymer that resists corrosion, maintains structural integrity under thermal stress, and will not degrade in the presence of common marine fluids. The sealing flap is molded from a rubber elastomer, selected for its exceptional flexibility, compression set resistance, and long term sealing performance. This robust material pairing ensures that the non return valve retains its operational characteristics across years of service, with no requirement for periodic lubrication or calibration. Every unit is subjected to stringent quality checks to guarantee leak free operation at the rated working pressures.

Bilge Pump Hose Non Return Valve for System Reliability

The operational advantages of incorporating a one way flap type check valve extend beyond simple backflow prevention. By maintaining a filled discharge line and breaking the siphon effect, the non return valve eliminates the risk of cyclical triggering of bilge pump float switches by water backflow on longer discharge hose runs. This reduction in unnecessary cycling translates directly to extended pump motor life, reduced battery draw, and lower overall system wear. Furthermore, the positive shut-off characteristic of the flap design prevents gradual water seepage that can lead to persistent bilge dampness, false float switch activations, and corrosion of surrounding equipment. For boating professionals and discerning boat owners alike, this valve represents a modest investment with outsized returns in system durability, increased pump efficiency, and generally onboard peace of mind.

12mm – 19mm – 25mm Non Return Hose Valve Installation Guidance

The one way valve can be installed horizontally, or vertically with flow directed upward. This orientation allows gravity to assist in seating the flap, ensuring an immediate and complete seal upon pump shut off. The valve is best positioned downstream of the pump and as close as possible to the thru-hull discharge point to minimise the volume of water backflow to the pump. Ensure the water flow arrow marked on the one way valve body points in the direction of water flow towards the thru-hull outlet. No special tools or sealants are required for this in-line graduated barb check valve, simply cut the hose cleanly, insert the barbed ends of the valve body, and secure with marine grade stainless steel hose clamps for a permanent, leak proof connection.
